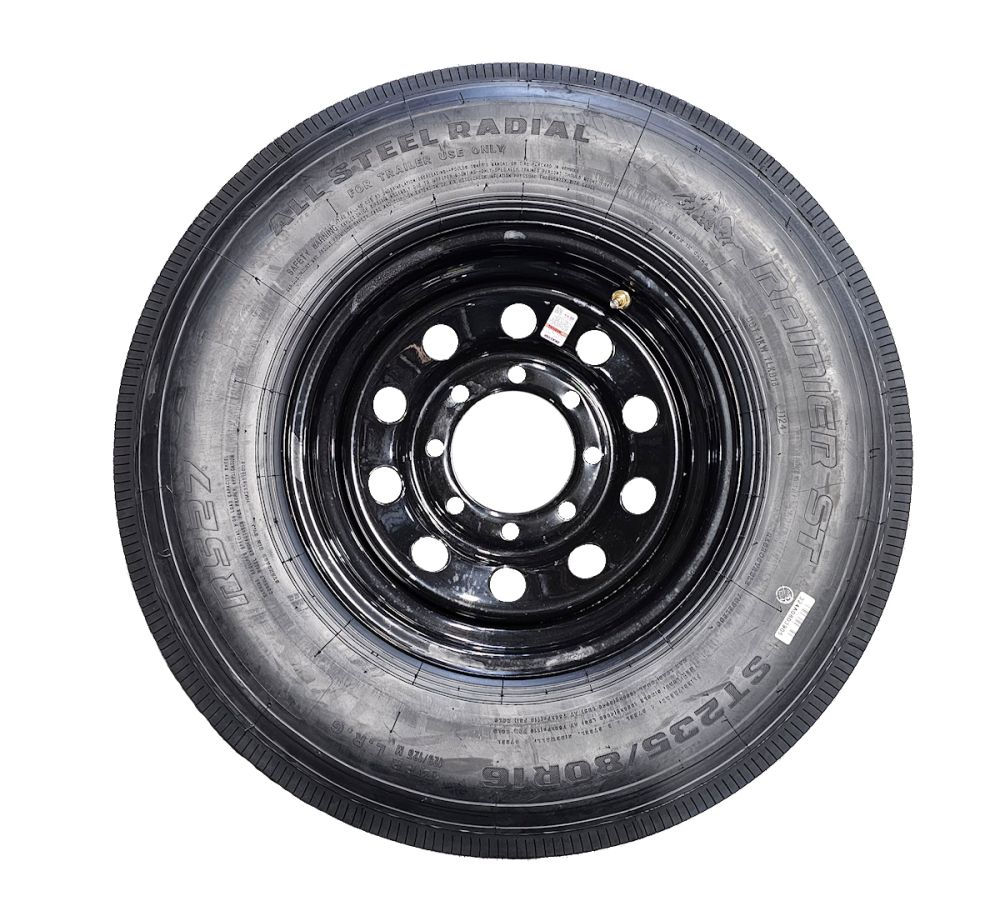

Ranier 235/80R16E Radial Tire on 16x6" Modular Wheel 8 lug on 6.5" dia pattern

Wheel specs
Size 16x6
Bolt Pattern 8x6.5"
Offset 0mm
Backspace 3.5"
Hub bore 4.9"
Weight 28 lbs
Load rating 4480 lbs

Rainier ST 235/80R16E 10 ply Radial Tire
Tire specs
• 235-80R-16E 10 ply
• Max load 3520
• Diameter 30.80 inches
• Width 9.3 inches
• 80 psi
• Speed Rating M/81 mph

The Rainier ST was designed with original equipment manufacturers in mind. With a light truck inspired tread pattern, added durability, high load capacity, and can withstand the rigorous demands of ST tires.

• Strong sidewalls to protect against accidental cuts and wear
• Wider center rib for improved wet traction and lower rolling resistance
• Solid main tread blocks on tread to enhance self-cleaning ability
• Varied tread pitch designed to reduce road noise
• Integrated tread blades designed to enhance tires road grip in all weather
• Improved heat dissipation with extended tread life.

• How to measure bolt ( Lug ) pattern.To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6-1/2 would mean 8 studs with 6-1/2” center-to-center diameter. See diagram above for example.
