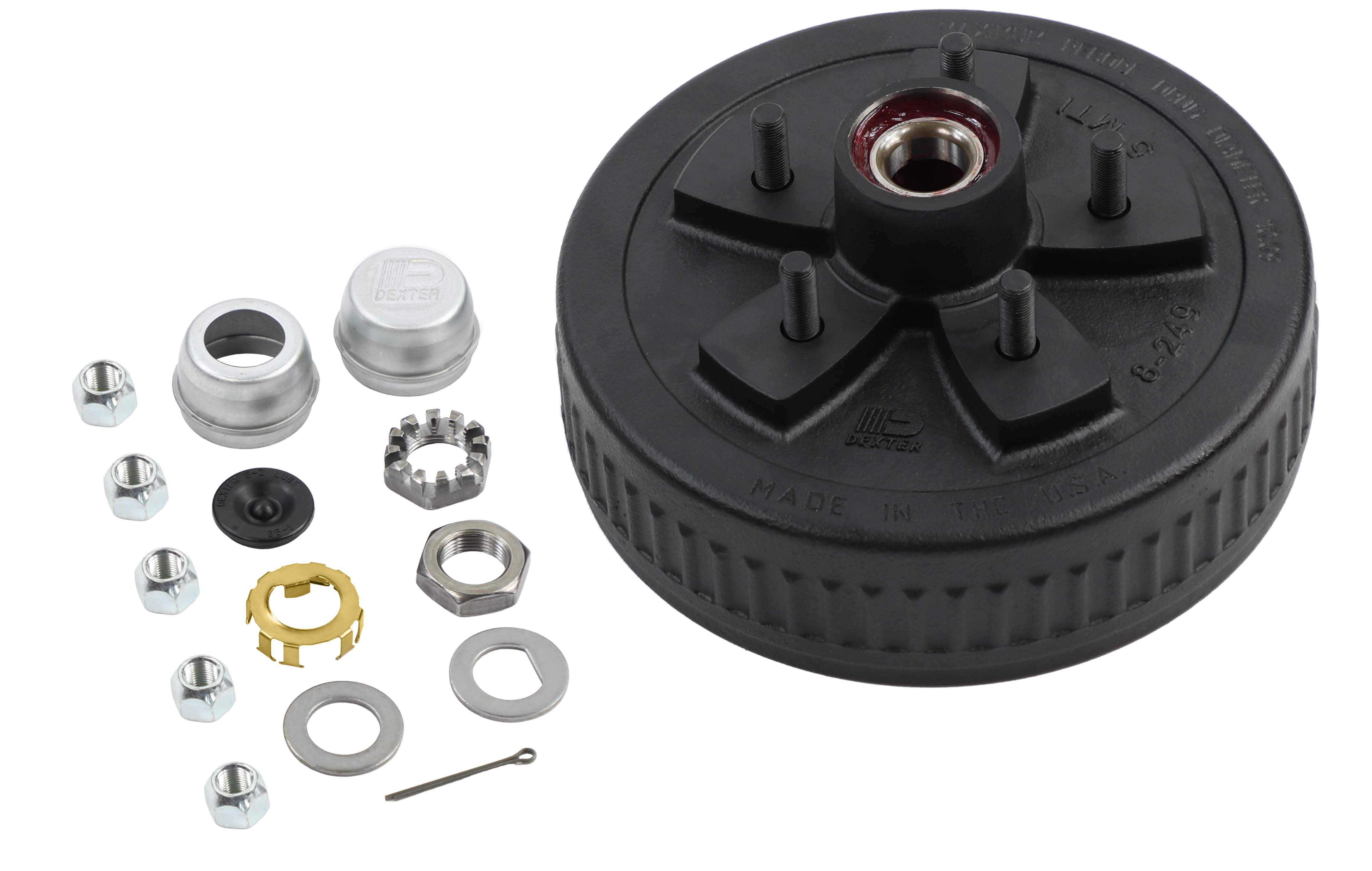

Complete Pre-Greased Hub-Electric Drum Assembly, 3.5K Capacity Per Pair, 5 lug on 5.0" Bolt Pattern. Fully assembled with bearing races and seals pressed in, pre-greased and ready to bolt on.
*Compatible with Dexter, Lippert and most other axle brands utilizing a #84 spindle with either the EZ Lube Grease Zerk type or standard grease type spindles.
Actual brand may vary based on availablilty.
Items in Kit:
• 1ea L68149 Inner Bearing (1.378" ID)
• 1ea L44649 Outer Bearing (1.063" ID)
• 1ea L44610 Outer Race (Already Pressed In) 1.98" OD
• 1ea L68111 Inner Race (Already Pressed In) 2.361" OD
• 1ea 10-19 Grease Seal (1.719" x 2.565")
• 1ea 46749 Grease Cap (1.986" OD) ( For standard grease type spindles )
• 1ea 21-41-1 Grease Cap (1.986" OD) ( For EZ Lube Zerk type spindles )
• 1ea 85-1 Grease Cap Plug ( For EZ Lube Zerk type spindles )
• 5ea X1023R Coned Wheel Nuts
• 1ea 5 on 5.0" Hub & Drum Pregreased and Fully Assembled.
• 1,750lb Capacity Per Hub
• Use with a 10" x 2-1/4" brake
• Spindle Nuts ( including Castle type )• Spindle Nut Retainer
• Round and D style Washers
• Cotter pin
• How to measure bolt ( Lug ) pattern.
To determine the bolt circle on hubs or wheels with an odd number of bolt holes ( 5 lug ), measure from outside to center of the studs across the pattern (bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3. See diagram above.
